Product Name：Dual Glass Solar ModuleUpdate Time：2019-4-24 9:06:21 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Details | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
drawings
The packing way
Electrical performance parameter
The mechanical parameters
The temperature parameter
Electrical performance curve
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PREV:nothing!
NEXT:PERC solar modules |
go back |

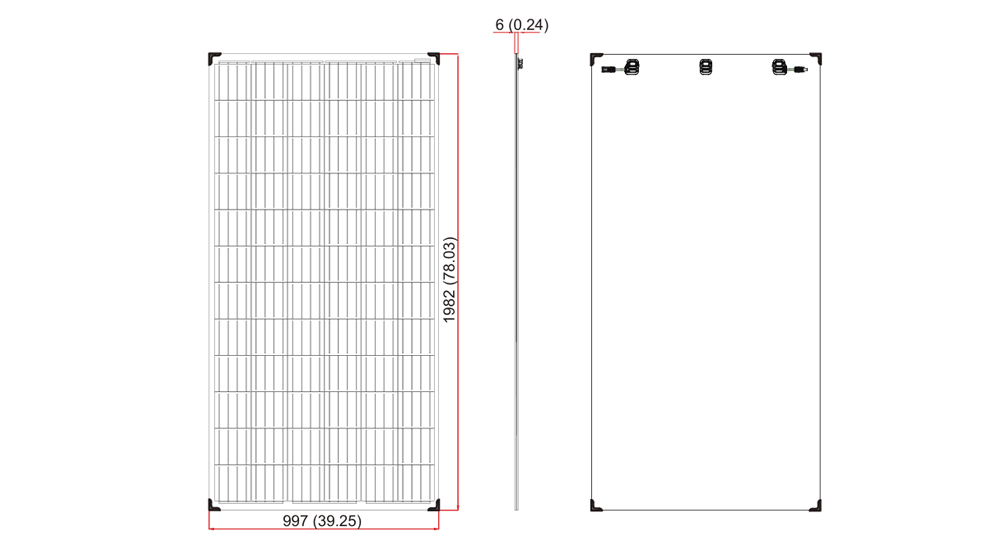

drawings
The packing way
| ark | 40'HQ |
Block/Joe |
30 |
Block/Joe |
660 |
Electrical performance parameter
| The component models |
JY325P6-Da-5 |
JY320P6-Da-5 |
JY315P6-Da-5 |
|
The most powerful |
325W |
320W |
315W |
| The efficiency of the component | 16.45% | 16.19% | 15.94% |
|
Maximum operating voltage |
37.28V |
37.13V |
36.81V |
|
Maximum operating current |
8.72A |
8.62A |
8.56A |
|
The open circuit voltage |
46.31V |
45.94V |
45.75V |
|
Short circuit current |
9.28A |
9.24A |
9.12A |
|
Working temperature |
-40~+85℃ |
||
| Output power tolerance | 0 to +5W | ||
|
Maximum system voltage |
1500V DC |
||
| NOCT | 45±2℃ | ||
|
Maximum fusing current |
20A |
||
The mechanical parameters
|
Battery model |
polysilicon 156.75 mm x 156.75 mm |
|
Number of cells |
72 （6×12） |
| The component weight |
28.1 kg (61.95 pounds) |
| Component size |
1982×997×6 mm(78.03×39.25×0.24 inches ) |
| Terminal block |
Protection gradeIP67 |
| The connector |
Compatible withMC4 |
| cable |
4mm 2 ，250 mm |
The temperature parameter
| Temperature coefficient of short circuit current | 0.04%/℃ |
| Temperature coefficient of open circuit voltage | -0.34%/℃ |
| Maximum power temperature coefficient | -0.41%/℃ |
|
*All rights reserved. Specifications are subject to change without prior notice。
|
|

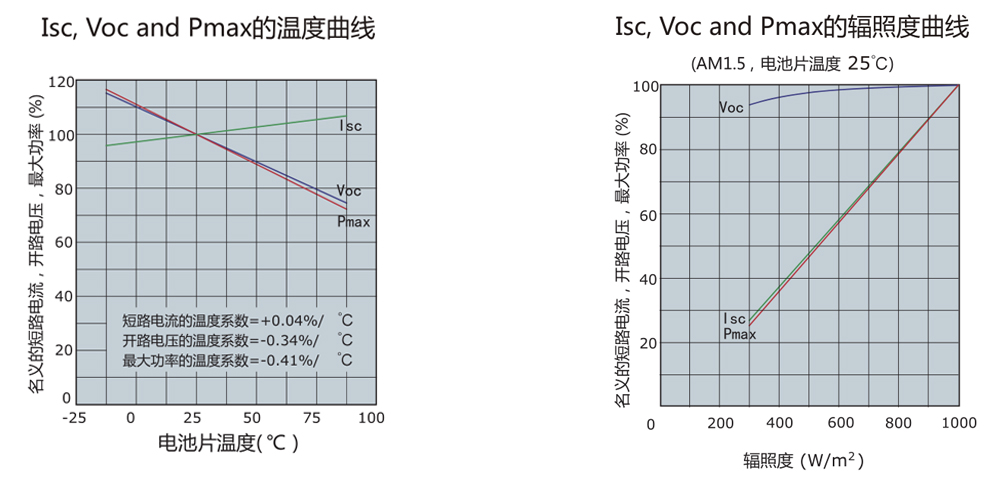

Electrical performance curve
